Heavy-Duty 3.5" Pipe & Bench Vise with Swivel Base | Yost Tools Blue Ductile Iron Vise | Secure Grip for Large Pipe Jaw Capacity | Perfect for Plumbing, Metalworking & DIY Projects
Delivery & Return:Free shipping on all orders over $50
Estimated Delivery:7-15 days international
People:23 people viewing this product right now!
Easy Returns:Enjoy hassle-free returns within 30 days!
Payment:Secure checkout
SKU:16147363
Product Description

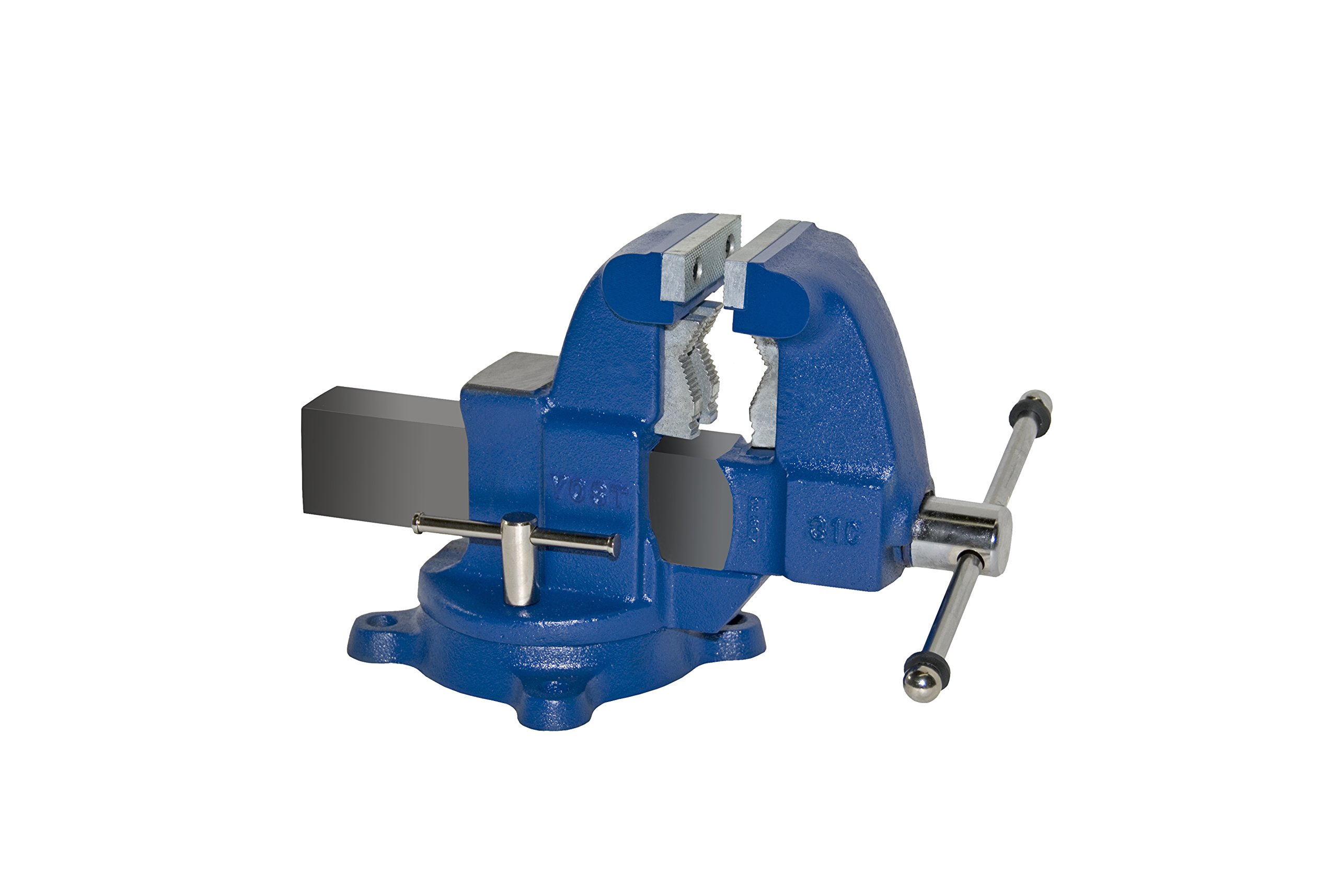

The Yost Vises 31C 3.5" combination pipe and bench vise with 360-degree swivel base mounts to a workbench to provide heavy-duty clamping action, meets Federal Specification GGG-V-410B Type IV, and is made in USA. The ductile iron body has a 360-degree swivel base that adjusts the direction of the jaws for proper placement. Hand-tightening the two lock knobs on the base secures its position. The top jaws and pipe jaws are made of hardened steel, are grooved for enhanced grip, and can be replaced when worn. The pipe jaws are set back to prevent interference with the use of the top jaws and can be adjusted both horizontally and vertically, customizing the grip for each pipe to prevent marring, crushing, and bending. The jaws draw closer together or farther apart by turning the vise handle clockwise or counterclockwise.The main screw that controls the jaws has been continuous rolled for high strength and is covered by a bar to protect it from damage. A rubber washer on either side of the handle prevents unwanted sliding when turning, and the balls on each end unscrew to enable replacement of the handle if worn. The base has three 0.5"-diameter holes for mounting hardware (not included).SpecificationsJaw width (nominal)3.5"Jaw opening (nominal)4"Throat depth (nominal)4.5"Pipe capacity0.125" to 2.5"Overall dimensions*9.5 x 7 x 15 inches (H x W x D)Weight40 lb.*H is height, the vertical distance from the lowest to highest point; W is width, the horizontal distance from left to right; D is depth, the horizontal distance from front to back.Vises use the clamping action of jaws to hold a workpiece in place for applications such as drilling and sawing. Vise styles are categorized by how the device is mounted. For example, bench vises mount to a benchtop; drill press vises bolt to a drill press; and woodworking vises fit underneath, on top, or to the side of a workbench. A vise's jaw opening and throat depth should be large enough for the workpiece.Yost Vises manufactures a wide range of vises, including bench-mount, woodworking, and drill-press styles. The company, founded in 1908, is headquartered in Holland, MI.
Product Features
COMBINATION VISE The Yost Vises 31C 3.5-inch utility pipe and bench vise are made from 65,000 PSI Tensile Ductile Iron body parts. It has hardened, replaceable steel pipe jaws and steel serrated jaws and continuous rolled thread on the main screw
TECHNICAL SPECS Jaw Width 3.5" (8.89 cm), Jaw Opening 4.0" (10.16 cm), Throat Depth 4.5" (11.43 cm), Min Pipe Capacity .125" (0.3175 cm), Max Pipe Capacity 2.5" (6.35 cm)
YOST VISES QUALITY Every Yost Vises tool is engineered to have high standards of quality, strength, and durability. We value quality over quantity and manufacture products that are safe and easy to use.
SAFETY INFORMATION Misuse of vises can cause serious injury to eyes, hands and or other body parts. Vises must be set up and used properly. Before setup and use, read, understand, and follow all instructions outlined in the manual.
WARRANTY Comes with a 1-year limited warranty and 90-day return.
Customer Reviews
Out of the box, I was not happy with this vise. The handle was bent in multiple planes and there was a lot of play in the screw. I emailed Yost and asked them if they would help me or if I should send it back. They bent over backwards to make me happy. As a machinist, I can tell you that the screw is out of tolerance for a machine tool, to which I am accustomed. But it's a bench vise. To get the slop out of the screw to moving jaw, I just made a more precise washer on the lathe (from a malleable iron pipe flange). I also needed to clean the threads good and re-grease them. I made two rubber washers that fit tightly on the handle so that it could be centered, if desired. The result is a vise that is so nice and so precise that it makes me smile every time I use it.Even though the jaws of the 32C are only 4 ½" wide, it is very deep and opens wide. The jaws are perfectly aligned and the action is smooth. I'm giving it five stars with the easy tweaks.
